Finishing up the cage
The mounts for the seats were fabricated from flat steel. Then I had to fabricate a place to bolt them to through the floor. The seats are JAZ aluminum high back seats.
|
Finishing up the cage |
||
|
|

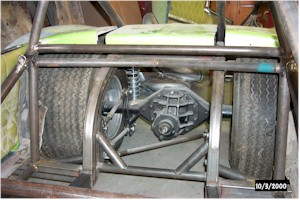

Over time, I finished up the

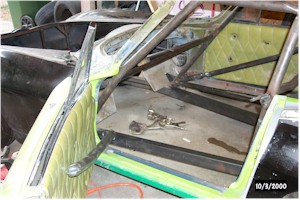

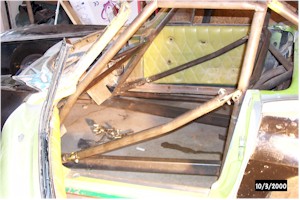

rollcage. I installed a swing-out door bar kit from Chris
Alston's Chassisworks to make entry/exit easier. I installed the

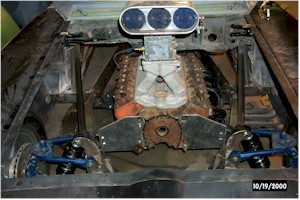

mounts for an aluminum front motor plate, and the mid-mount plate. Once

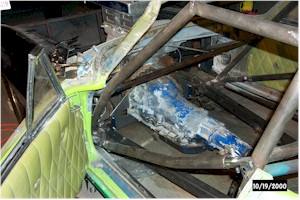

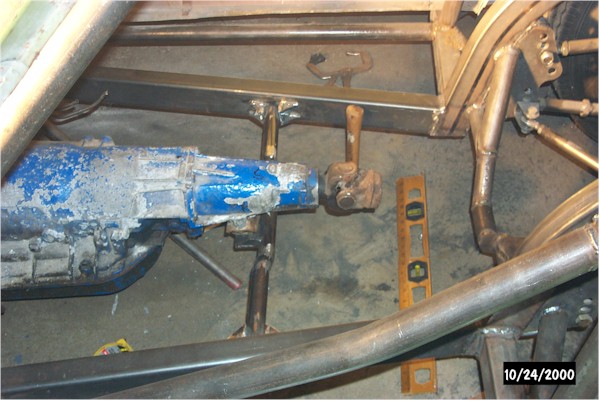

the engine/transmission could bolt in I found out the driveshaft

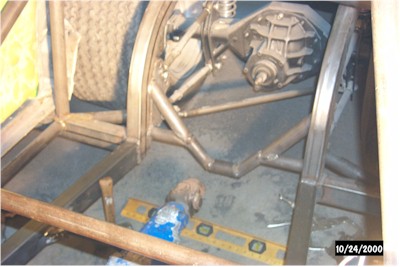

would hit the lower crossmember for the frame. The crossmember was cut and
dropped to allow the driveshaft to pass through that section of the frame.

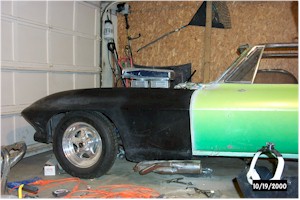

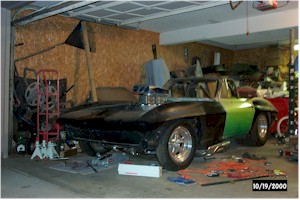

I bolted one of the rusted-out headers that came with the car. The engine
now sits a little more rearward than stock, and near the stock height.
This will allow approximately 5 inches of ground clearance at the lowest
point.
The mounts for the seats were fabricated from flat steel. Then I had to fabricate a place to bolt them to through the floor. The seats are JAZ aluminum high back seats.
|
|
